Energy storage inverter

Cooperate with the research and development of lithium battery energy storage panels and BMS energy storage systems to build a bidirectional inverter platform for energy storage

Home Product Solutions Lithium Energy Storage Solutions Lithium Energy Storage

Product Introduction

Cooperate with the research and development of lithium battery energy storage panels and BMS energy storage systems, build a bidirectional inverter platform for energy storage, create a Ruide energy storage industry chain, and meet market development needs.

Product features

The BMS protection board features modular design, making it easy to transplant and develop.

Simulink modeling development enables online simulation and more efficient development.

SOC accuracy ≤ 5% in different scenarios, meeting the vast majority of requirements.

The balancing function improves battery consistency and makes battery operation more efficient.

Protection functions such as overvoltage, undervoltage, short circuit, and overheating ensure safer battery operation.

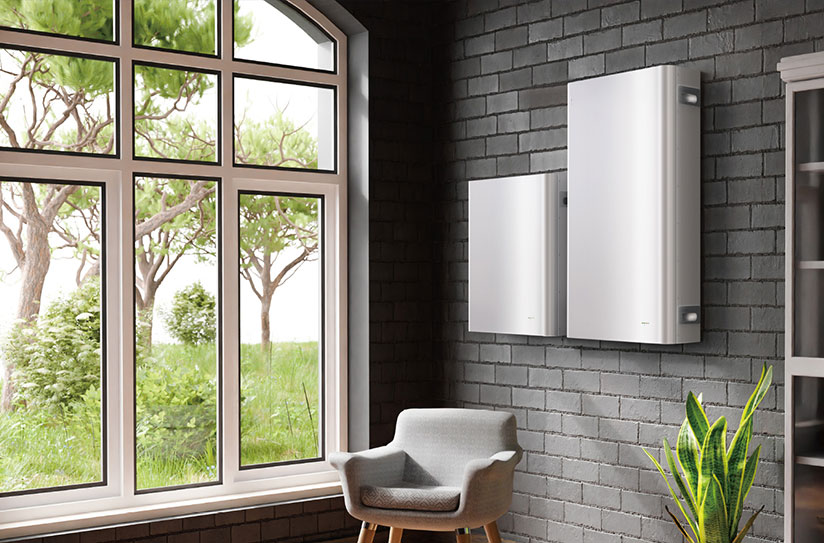

Application scenario

Product Parameters

power level	300W	500W		1000W	2000W	3000W
rated power	300W	500W		1000W	2000W	3000W
peak power	600W(<2S）	1000W(<2S)		2000W(<2S)	4000W(<2S)	6000W(<2S)
Input voltage	12V/24V/48V	12V/24V/48V		12V/24V/48V	12V/24V/48V	24V/48V
Output voltage	100VAC±5%/110VAC±5%/120VAC±5%or 200VAC±5%/220VAC±5%/240AC±5%
Output frequency	50HZ±0.5HZ or 60HZ±0.5HZ
Output waveform	Pure sine wave
Waveform distortion	THD＜3%(Linear load)
Output maximum efficiency	Max 94%
Start Mode	Front and rear bipolar soft start
USB output	5V/0.5A max(standard) 5V/2A(optional)
DC output(optional)	12V/10A
Digital tube display(optional)	Voltage, current, power, frequency, battery voltage and other parameters
Cooling	Intelligent air cooling
Protection function	Undervoltage/overvoltage		LED red light on, automatic recovery; Buzzer alarm
	overload		LED red light on, locked Buzzer alarm
	Over Temperature		LED red light on, automatic recovery; Buzzer alarm
	short circuit		LED red light on, automatic recovery; Buzzer alarm
	Reverse input		Diode
Ambient Temperature	﹣20°-—+50°
Storage temperature	﹣30°-—+75°
